PythonBPF - Writing eBPF Programs in Pure Python

Introduction

Python-BPF offers a new way to write eBPF programs entirely in Python, compiling them into real object files. This project is open-source and available on GitHub and PyPI. I wrote it alongside R41k0u.

Published Library with Future Plans

Python-BPF is a published Python library with plans for further development towards production-ready use.
You can pip install pythonbpf but it’s certainly not at all production ready and the code is hacky at best with more bugs than I could count. (This was a hackathon project afterall. We plan to fix it after we are done with the hackathon.)

The Old Way: Before Python-BPF

Before Python-BPF, writing eBPF programs in Python typically involved embedding C code within multiline strings, often using libraries like bcc. eBPF allows for small programs to run based on kernel events, similar to kernel modules.

Here’s an example of how it used to be:

from bcc import BPF
from bcc.utils import printb

# define BPF program
prog = """
int hello(void *ctx) {
    bpf_trace_printk("Hello, World!\\n");
    return 0;
}
"""

# load BPF program
b = BPF(text=prog)
b.attach_kprobe(event=b.get_syscall_fnname("clone"), fn_name="hello")

# header
print("%-18s %-16s %-6s %s" % ("TIME(s)", "COMM", "PID", "MESSAGE"))

# format output
while 1:
    try:
        (task, pid, cpu, flags, ts, msg) = b.trace_fields()
    except ValueError:
        continue
    except KeyboardInterrupt:
        exit()
    printb(b"%-18.9f %-16s %-6d %s" % (ts, task, pid, msg))

This approach, while functional, meant writing C code within Python, lacking support from modern Python development tools like linters.

Features of the Multiline C Program Approach

# load BPF program
b = BPF(text="""
#include <uapi/linux/ptrace.h>

BPF_HASH(last);

int do_trace(struct pt_regs *ctx) {
    u64 ts, *tsp, delta, key = 0;

    // attempt to read stored timestamp
    tsp = last.lookup(&key);
    if (tsp != NULL) {
        delta = bpf_ktime_get_ns() - *tsp;
        if (delta < 1000000000) {
            // output if time is less than 1 second
            bpf_trace_printk("%d\\n", delta / 1000000);
        }
        last.delete(&key);
    }

    // update stored timestamp
    ts = bpf_ktime_get_ns();
    last.update(&key, &ts);
    return 0;
}
""")

The multiline C program approach allowed for features like BPF MAPS (hashmap type), map lookup, update, and delete, BPF helper functions (e.g., bpf_ktime_get_ns, bpf_printk), control flow, assignment, binary operations, sections, and tracepoints.

Similar Program in Reduced C

For production environments, eBPF programs are typically written in pure C, compiled by clang into a bpf target object file, and loaded into the kernel with tools like libbpf. This approach features map sections, license global variables, and section macros specifying tracepoints.

#include <linux/bpf.h>
#include <bpf/bpf_helpers.h>
#define u64 unsigned long long
#define u32 unsigned int

struct {
    __uint(type, BPF_MAP_TYPE_HASH);
    __uint(max_entries, 1);
    __type(key, u32);
    __type(value, u64);
} last SEC(".maps");

SEC("tracepoint/syscalls/sys_enter_execve")
int hello(struct pt_regs *ctx) {
    bpf_printk("Hello, World!\\n");
    return 0;
}

char LICENSE[] SEC("license") = "GPL";

Finally! Python-BPF

Python-BPF brings the true eBPF experience to Python by allowing the exact same functionality to be replaced by valid Python code. This is a significant improvement over multiline C strings, offering support from existing Python tools.

from pythonbpf import bpf, map, section, bpfglobal, compile
from ctypes import c_void_p, c_int64, c_int32, c_uint64
from pythonbpf.helpers import ktime
from pythonbpf.maps import HashMap

@bpf
@map
def last() -> HashMap:
    return HashMap(key_type=c_uint64, value_type=c_uint64, max_entries=1)

@bpf
@section("tracepoint/syscalls/sys_enter_execve")
def hello(ctx: c_void_p) -> c_int32:
    print("entered")
    return c_int32(0)

@bpf
@section("tracepoint/syscalls/sys_exit_execve")
def hello_again(ctx: c_void_p) -> c_int64:
    print("exited")
    key = 0
    last().update(key)
    ts = ktime()
    return c_int64(0)

@bpf
@bpfglobal
def LICENSE() -> str:
    return "GPL"

compile()

Python-BPF uses ctypes to preserve compatibility, employs decorators to separate the BPF program from other Python code, allows intuitive creation of global variables, and defines sections and tracepoints similar to its C counterpart. It also provides an interface to compile and run in the same file.

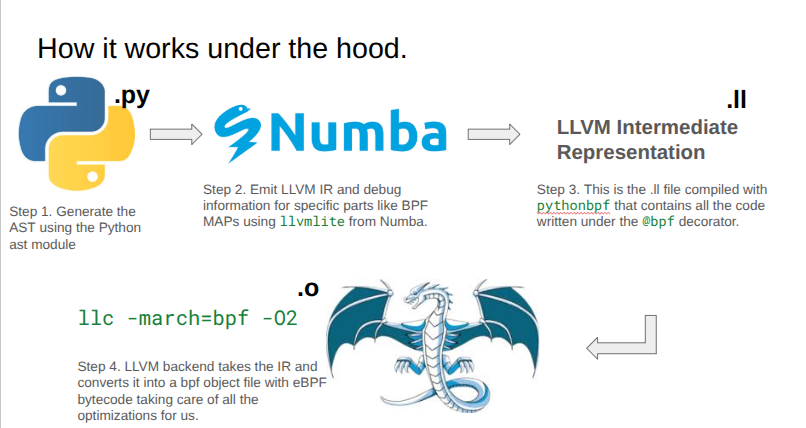

How it Works Under the Hood

1. Step 1: Generate AST The Python ast module is used to generate the Abstract Syntax Tree (AST).

2. Step 2: Emit LLVM IR llvmlite from Numba emits LLVM Intermediate Representation (IR) and debug information for specific parts like BPF MAPs. The .py file is converted into LLVM Intermediate Representation.

3. Step 3: Compile LLVM IR The .ll file, containing all code written under the @bpf decorator, is compiled using llc -march=bpf -O2.

4. Step 4: Generate eBPF Object File The LLVM backend takes the IR and converts it into a bpf object file with eBPF bytecode, handling all optimizations.



Salient Features

Previous Python options for eBPF relied on bcc for compilation, which is not ideal for production use. The only two real options for production-quality eBPF programs were aya in Rust and Clang with kernel headers in C. Python-BPF introduces a third, new option, expanding the horizons for eBPF development.

It currently supports:

• Control flow
• Hash maps (with plans to add support for other map types)
• Binary operations
• Helper functions for map manipulation
• Kernel trace printing functions
• Timestamp helpers
• Global variables (implemented as maps internally with syntactical differences)

TL;DR

• Python-BPF allows writing eBPF programs directly in Python.
• This library compiles Python eBPF code into actual object files.
• Previously, eBPF programs in Python were written as C code strings.
• Python-BPF simplifies eBPF development with Python decorators.
• It offers a new option for production quality BPF programs in Python.
• The tool supports BPF maps, helper functions, and control flow, with plans to extend to completeness later.

Thanks for reading my poorly written blog :)
